Art. 8610-O-EN / Art. 8610-A-EN
Accessories in combination with hoses :
- quick couplings
- threaded hose couplings
- manifolds
- hoses and hose clips
Download files
Products
- Art. 8610-O-EN / Art. 8610-A-EN
Quick couplings with automaticgas stop, for quick and safe coupling and
decouplingunder pressure, according to EN 561. For hoses with inner
diameter 6 and 8 mm.
– For connectingon to the pressure regulator:
Oxygen quick coupling 3/8” R,including nipple Art. 8610-O-EN
Oxygen nippleonly Art. 8611-O-EN
Acetylene quick coupling 3/8” L, including nipple Art. 8610-A-EN
Acetylene nippleonly Art. 8611-A-EN

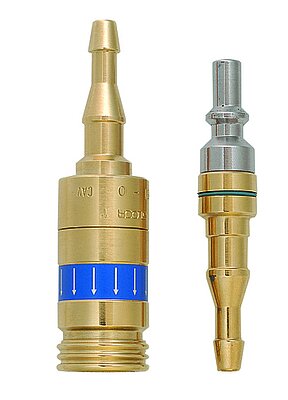

- Art. 8620-O-EN / Art. 8620-A-EN
– For connectinghoses:
Oxygen quick coupling including nipple Art. 8620-O-EN
Oxygen nippleonly Art. 8611-O-EN
Acetylene quick coupling including nipple Art. 8620-A-EN
Acetylene nippleonly Art. 8611-A-EN
- Art. 8630-O-EN / Art. 8630-A-EN
– For connectionon the torch handle:
Oxygen quick coupling including
nipple with screwed connector 1/4” R Art. 8630-O-EN
Oxygen nipple1/4” R only Art. 8631-O-EN
Acetylene quick coupling including
nipple with screwed connector 3/8” L Art. 8630-A-EN
Acetylene nipple3/8” L only Art. 8631-A-EN
- Art. 3730 / Art. 3740
Threaded hose couplings for extending hoses, complete with
hoseconnectors (for hose5, 6 or 8 mm)
Foroxygen 1/4”R x 3/8”R Art. 3730
Foracetylene 3/8”L x 3/8”L Art. 3740
- Art. 8400
Low pressure manifold in forged brass with control valves, for connection
after the pressure regulator, incl.hoseconnectors:
foroxygen Art. 8400-O
for fuelgas Art. 8400-F
(also available for all other gases)
- Art. 8500
Highpressure manifold in brass,for direct connection to the cylinder and
for working with two separate pressure regulators:
foroxygen Art. 8500-O
foracetylene Art. 8500-A
(also available for all other gases)
- Art. 1005 to Art 1008
Welding hose,accordingto ISO 3821, red (acetylene) and blue(oxygen)
Inner diameter 5 mm Art. 1005
Inner diameter 6 mm Art. 1006
Inner diameter 8 mm Art. 1008
- Art. 1055 to Art 1088
Twinhose,according to ISO 3821
Inner diameter 5 mm Art. 1055
Inner diameter 6 mm Art. 1066
Inner diameter 8 mm Art. 1088
- Art. 5690
Hosesupport (light metal wallbracket) Art. 5690
- Art. 8305 to Art. 8308
Hoseclip for Art. 1005 (hose 5 mm) Art. 8305
Hoseclip for Art. 1006 (hose 6 mm) Art. 8306
Hoseclip for Art. 1008 (hose 8 mm) Art. 8308
- Art. 8315 to Art. 8318
Double clip (for keeping hoses together)
for Art. 1005 (hose 5 mm) Art. 8315
for Art. 1006 (hose 6 mm) Art. 8316
for Art. 1008 (hose 8 mm) Art. 8318
- Art. 8325 to Art. 8328
Hosesplicer for Art. 1005 (hose 5 mm) Art. 8325
Hosesplicer for Art. 1006 (hose 6 mm) Art. 8326
Hosesplicer for Art. 1008 (hose 8 mm) Art. 8328
